| Place of Origin: | Guangdong, China |
| Brand Name: | FABLE |
| Certification: | CE certificate |
| Model Number: | FJM-2014A |
| Minimum Order Quantity: | 1Unit |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton and Box |
| Delivery Time: | within 7 days after receive the payment |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 1000Units per Month |
| Product Name: | Gem&Jewelry Lapidary Machine | Function One: | Faceting |
|---|---|---|---|
| Function Two: | Polishing | With Faceting Hand: | YES |
| Speed Of Mainshaft: | 2300 To 2800 R/min | Motor Speed: | 1350 R/min |
| Motor Power: | 170W To 180W | Input Voltage: | AC 220V, 50-60Hz |
| Highlight: | jewelry testing equipment,gemstone testing tools |
||

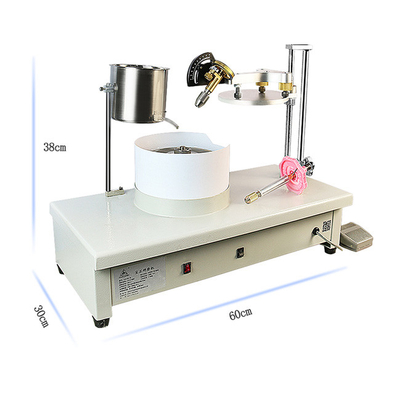

High Precision FJM-2014A Tool Accessories Gemological Lapidary Machine FJM-2014A
Product Parameters
| *Model | FJM-2014A |
| *Input Voltage | AC220V,50/60HZ |
| *Moter Power | 170-180W |
| *Speed of Moter | 1350r/min |
| *Speed of Mainshaft | 2300-2800r/min |
| *Diameter of the disk | 150mm |
| *Angle Range | 1-90 degree |
| *Size of Machine | 600*300*380mm |
| *With vernier scale,accuracy | 0.1mm |
| *Index wheel | 96 and 64 |
Product Description
Gemological Lapidary Machine with Faceting and Polishing Functions with High Precision.
Product Application
gemology, gem/jewellry manufacturing industry, jewellery technology school, etc.
Product Accessories
1.One Bucket
2.One Shaping holder
3.One Faceting holder
4.One Polishing and Faceting disk,Diameter:150mm
5.With Power switch
6.automatic control button
7.Foot controller
8.One cable connector
9.10 pieces of dop stick
10.One set of stander
Operation Methods
There are ways to operate the machine by automatic and foot control.
1. Foot control. First turn on the machine's power switch, and then step on the foot switch, so that the grinding disc will begin to rotate for gem processing.When shutting down, raise the foot switch first, and then turn off the power switch.
2. Automatic control. Turn on the power switch first, and then turn on the automatic switch, the machine starts to automatic working. When closing,turn off the automatic switch at first,and then turn off the power switch.
